Model# AMC

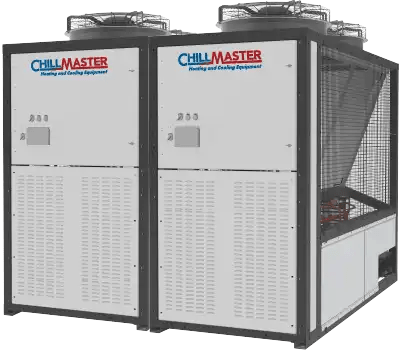

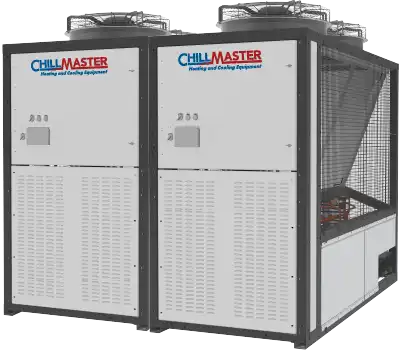

Air Cooled Modular Chiller
ChillMaster® Air-Cooled Modular Chiller provides efficient performance, reliable operation, and precise temperature control in ambient temperatures down to 0°F.
The AMC features ECM fans that are statically and dynamically balanced. Grooved coupling connections allowing for quick and easy assembly. Packed inside a rugged 40” wide galvannealed steal frame with powder coated exterior panels to minimized corrosion and promote long equipment life!
Tonnages: 20, 30 ton
Configurations: 20-300 ton per bank
Voltages: 208, 230, 380, 460, 575
• Leaving water temperatures of 40°F with standard evaporator
• Reliable operation in ambient temperatures of 0°F – 140°F
• 40″ wide galvannealed steal frame with powder coated exterior panels
• Single and dual refrigeration circuits
• Fully hermetic scroll compressor and ECM fans
• Intuitive, factory installed microprocessor-based controller compatible with BACnet® MSTP or IP
| Nominal Tonnage | Width | Depth | Height | Weight |
| 20 Tons | 40 in [1016 mm] | 96 in [2438.4 mm] | 89 in [2260.6 mm] | 2150 lbs [975.25 kg] |
| 30 Tons | 40 in [1016 mm] | 96 in [2438.4 mm] | 89 in [2260.6 mm] | 2150 lbs [975.25 kg] |
| Tonnage | W x D x H | Weight |
| 20 Tons | 40 x 96 x 89” | 2150 lbs |
| 30 Tons | 40 x 96 x 89” | 2150 lbs |
