Air Source Modular Heat Pump
Model# AMP
At ChillMaster, we’re committed to redefining heating and cooling systems for a more sustainable future.

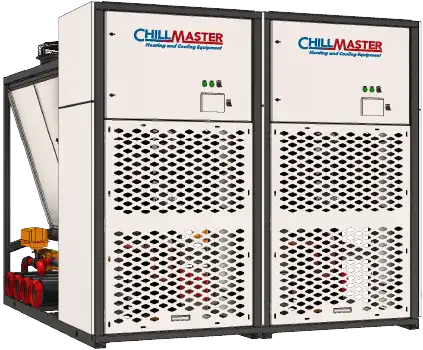

The ChillMaster Air Source Heat Pump (AMP)—a high-efficiency, eco-friendly solution designed to meet the demands of modern commercial environments.
The AMP delivers exceptional performance, producing hot water at temperatures up to 140°F (60°C) with a peak COP that maximizes energy savings. With a wide operating range and the use of low GWP R-454b refrigerant, it’s the ideal choice for eco-conscious applications, from offices and schools to data centers and beyond.
Tonnages: 30-Ton Modules
Configurations: 30-300 tons per bank
Voltages: 208/230V, 460V
• All-in-one, simultaneous heating and cooling solution.
• 30 ton modular design with single point electrical connection (link up to 10 modules per bank).
• Reliable operations in ambient temperatures of -15°F ~ 140°F.
• 30 tons cooling with chilled water down to 40°F (4.4°C). Optional upgrade to 34°F (1.1°C)
• 430MBH heating with hot water up to 140°F (60°C).
• 2-pipe, 4-pipe, and domestic water heating configurations
• Heating COP up to 4.5 and EER up to 15.5
| Nominal Tonnage | Width | Depth | Height | Weight |
| 30 Tons | 40 in [1016 mm] | 96 in [2438.4 mm] | 89 in [2260.6 mm] | 2150 lbs [975.25 kg] |
| Tonnage | W x D x H | Weight |
| 30 Tons | 40 x 96 x 89” | 2150 lbs |
