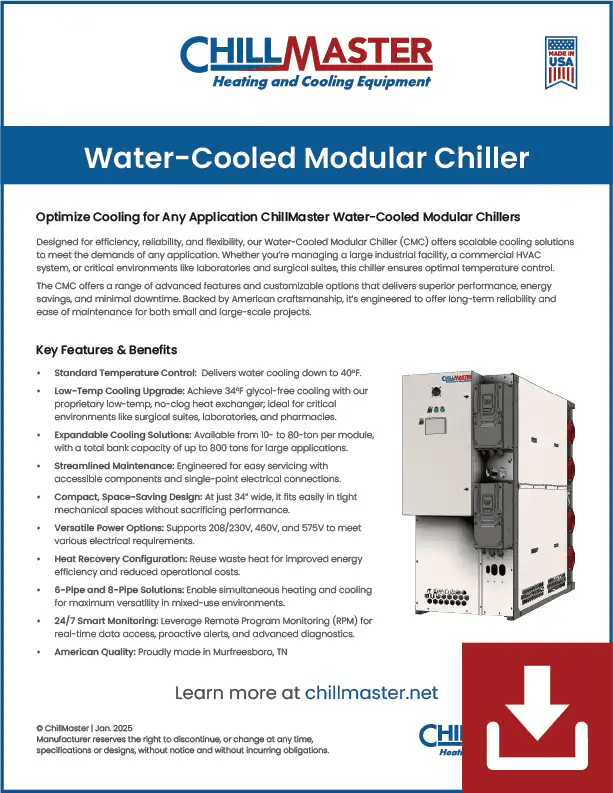

Water Cooled Modular Chiller

Model# CMC

Looking for a cooling solution that’s as flexible as it is reliable? The ChillMaster Water-Cooled Modular Chiller (CMC) is designed to meet your needs, with a capacity range of 10–80 tons per module and the ability to scale up to 10 modules (≤800 tons).

But the CMC isn’t just about capacity—it’s about convenience. With hinged electrical enclosures for easy compressor access and isolation valves for independent heat exchanger flushing, maintenance has never been simpler.

Whether you’re cooling a small office or a large industrial facility, the ChillMaster CMC delivers the performance and reliability you can count on.

Tonnages: 10-, 15-, 20-, 30-, 40-, 50-, 60-, 70, and 80-Ton Modules

Configurations: 10-800 tons per bank

Voltages: 208, 230, 460, 575

• Leaving water temperatures of 40°F with standard evaporator

• R410a and R454b refrigerant available

• Compact, 34″ wide frame designed to fit through standard doorways

• Single and dual pumps racks available

• Intuitive, factory installed microprocessor-based controller compatible with BACnet® MSTP or IP

• Acoustic hoods and sound isolating cabinets available for sound sensitive applications

Nominal Tonnage	Width	Depth	Height	Weight
10-Ton	24 in [609.6 mm]	66 in [1676.4 mm]	64 in [1625.6 mm]	883 lbs [400.5 kg]
15-Ton	24 in [609.6 mm]	66 in [1676.4 mm]	64 in [1625.6 mm]	903 lbs [409.6 kg]
20-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1139 lbs [516.6 kg]
30-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1174 lbs [532.5 kg]
40-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1268 lbs [575.2 kg]
50-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1583 lbs [718 kg]
60-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1619 lbs [734.4 kg]
70-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1656 lbs [751 kg]
80-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1920 lbs [871 kg]

Tonnage	W x D x H	Weight
10-Ton	24 x 66 x 64″	883 lbs
15-Ton	24 x 66 x 64″	903 lbs
20-Ton	34 x 78 x 72″	1139 lbs
30-Ton	34 x 78 x 72″	1174 lbs
40-Ton	34 x 78 x 72″	1268 lbs
50-Ton	34 x 78 x 72″	1583 lbs
60-Ton	34 x 78 x 72″	1619 lbs
70-Ton	34 x 78 x 72″	1656 lbs
80-Ton	34 x 78 x 72″	1656 lbs
