Surgical, Pharmacy & Lab Modular Chiller

Model# CML

In medical environments, precision is everything. Research shows that maintaining a room temperature of 60°F with 50% relative humidity reduces the risk of nosocomial infections and improves patient recovery rates. But achieving this level of control requires a solution that’s both efficient and reliable.

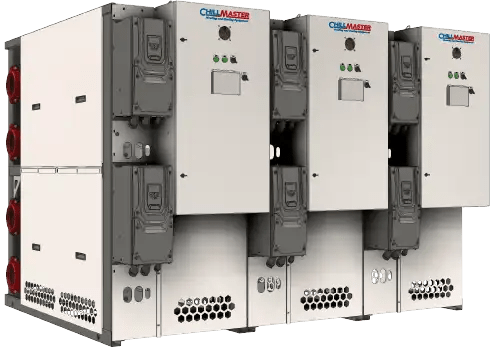

Enter the ChillMaster Surgical, Pharmacy & Lab Modular Chiller (CML). Designed for critical healthcare applications, the CML delivers consistent performance, precise temperature control, and maintenance-friendly operation—all at a cost-effective price point.

With the ChillMaster CML, you’re not just controlling the environment—you’re safeguarding patient health and optimizing operational efficiency.

Tonnages: 10-, 15-, 20-, 30-, 40-, 50-, and 60-Ton Modules

Configurations: 10-600 tons per bank

Voltages: 208, 230, 460, 575

• Equipped with ChillMaster No-Clog Heat Exchanger

• 34°F glycol-free cooling

• Compact, 34″ wide frame designed to fit through standard doorways

• Single and dual pumps racks available

• Intuitive, factory installed microprocessor-based controller compatible with BACnet® MSTP or IP

• Acoustic hoods and sound isolating cabinets available for sound sensitive applications

Nominal Tonnage	Width	Depth	Height	Weight
10-Ton	24 in [609.6 mm]	66 in [1676.4 mm]	64 in [1625.6 mm]	883 lbs [400.5 kg]
15-Ton	24 in [609.6 mm]	66 in [1676.4 mm]	64 in [1625.6 mm]	903 lbs [409.6 kg]
20-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1139 lbs [516.6 kg]
30-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1174 lbs [532.5 kg]
40-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1268 lbs [575.2 kg]
50-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1583 lbs [718 kg]
60-Ton	34 in [863.6 mm]	78 in [1981.2 mm]	72 in [1828.8 mm]	1619 lbs [734.4 kg]

Tonnage	W x D x H	Weight
10-Ton	24 x 66 x 64″	883 lbs
15-Ton	24 x 66 x 64″	903 lbs
20-Ton	34 x 78 x 72″	1139 lbs
30-Ton	34 x 78 x 72″	1174 lbs
40-Ton	34 x 78 x 72″	1268 lbs
50-Ton	34 x 78 x 72″	1583 lbs
60-Ton	34 x 78 x 72″	1619 lbs
